Bluetooth pcb with amplifier circuit board
Features
Product Details

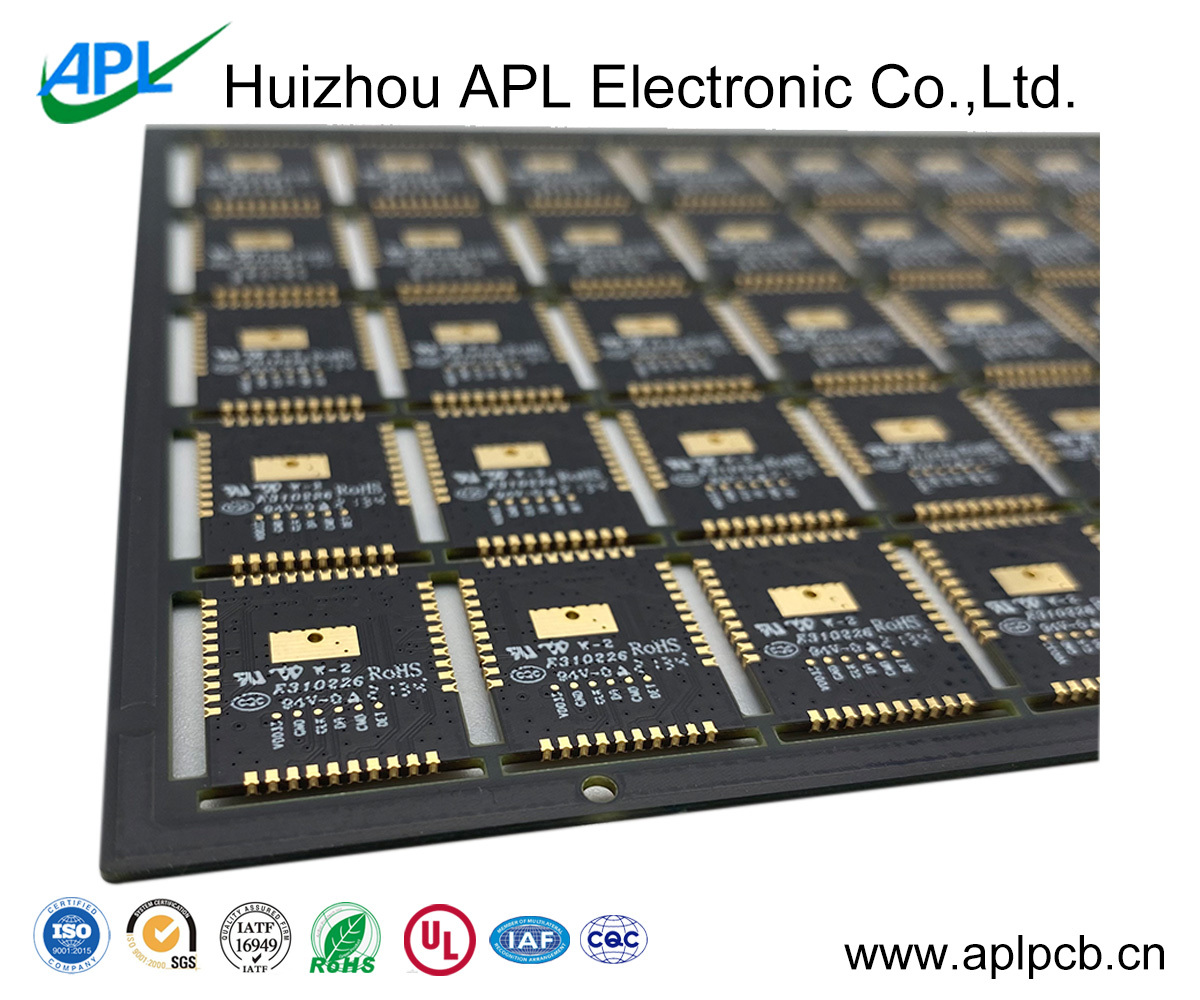

Bluetooth pcb with amplifier circuit board
Board thickness: 1.6mm
Copper thickness: Inner layer 3oz, out layer 4oz
Surface treatment: ENIG 2u"
Min drilling hole: 0.5mm
Delivery period:20~25 working days
Specializing in the production and sales of double-sided and multi-layer precision circuit boards, we have professional and reliable circuit board production technology and high-precision printed circuit board production equipment and testing equipment. Products are widely used in automobiles, new energy, communication equipment, security, industrial control, power equipment. The annual output of high-precision circuit boards is 400,000 square meters, the minimum line width and line spacing are 0.075mm, and the minimum via hole diameter is 0.15mm
Company Strength
Service Philosophy
The company's management system adopts the general manager responsibility system. Most of the company's management members are elite talents in the management and R&D of the domestic PCB industry. The company currently has functional departments such as engineering technology, quality inspection, marketing, and operation management. The company has 70 More than 100% of the employees are college students or above, and their majors involve electronics, chemical engineering, machinery, optics, industrial automation, marketing and business management.
Business Objectives
Based on high technology, strive to create a high-quality enterprise
Business Purpose
Technology makes users feel at ease, service makes users satisfied
Win-win Rule
Seek development in cooperation, seek survival in mutual benefit
-
